Joying 9 inch 1280*720 Toyota Land Cruiser Prado 150 2013-2017 HD Radio Android 10 Head Unit
SKU: JY-TQ174N4GN
Ship From: Chinese Warehouse
CPU: Octa Core 1.8GHz. 64-bit high-performance processor
Ram:LPDDR4 4GB Rom:Samsung 64GB
9 Inch Toyota Land Cruiser Prado 150 Head Unit Android 10 Autoradio.
Support Bluetooth,Navigation,FM Radio,WiFi,DVR,OBD2,DAB+,Backup Camera.

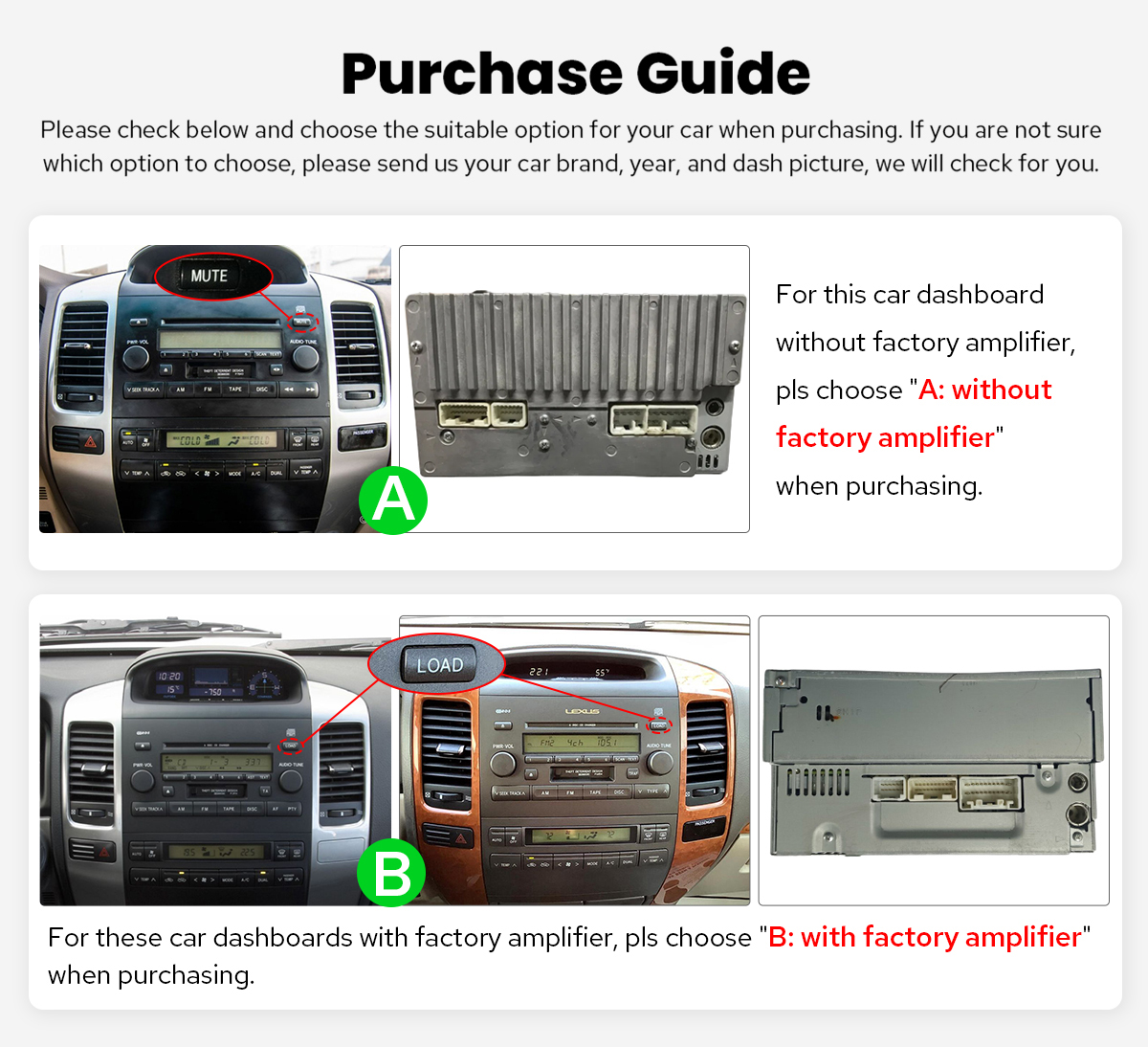

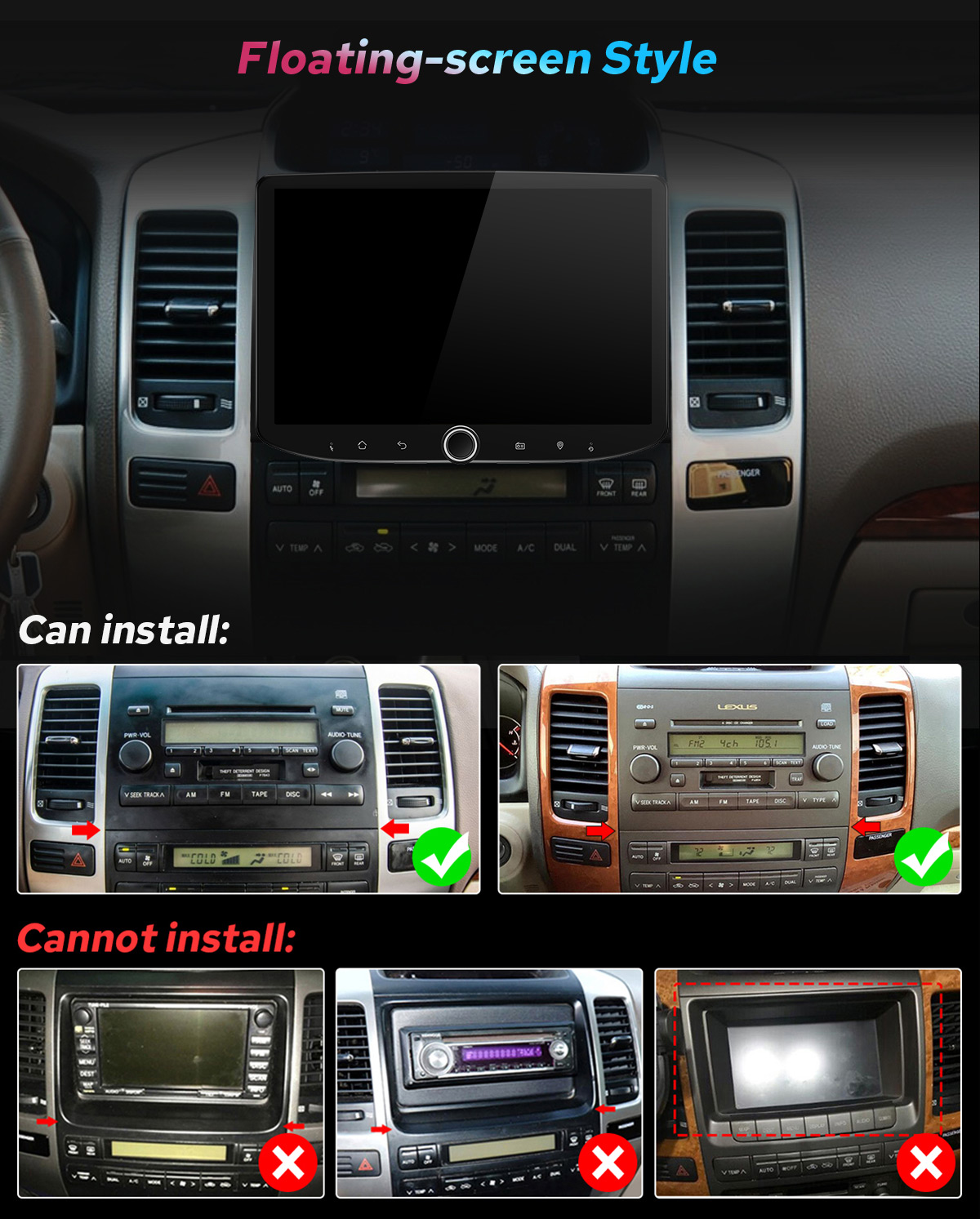

Applicable Car Models: Toyota Land Cruiser Prado 150 2014-2017
Note: If you are not sure whether this head unit can fit your car, pls send your car model, years and dashboard picture to europe@joyingauto.com, we will help you confirm it.
Supported Micro SIM cards type:
|
GSM |
GSM850 EGSM900 DCS1800 PCS1900 |
WCDMA | BAND1 BAND2 BAND5 BAND8 | |
SIM Cards Type |
TD-SCDMA | BAND34 BAND39 |
TDD-LTE | BAND34 BAND38 BAND39 BAND40 BAND41 | |
FDD-LTE | BAND1 BAND2 BAND3 BAND5 BAND7 BAND8 BAND20 BAND29A |
Note:
1. Joying Android Autoradios cannot support the original Car GPS antenna, USB, Original Backup Camera, Bluetooth, and microphone. But Joying radios come with GPS antenna, USB Ports, Bluetooth, Microphone, and Backup Camera(the backup camera needs purchase separately).
2. Please don't upgrade your car radio with other firmware which isn't provided by Joying. Otherwise, it will damage the radio board and you won't update your unit anymore, also you will lose the 2-year warranty.
Shipping:
1. We ship the unit from China Warehouse via DHL for free to most countries. Some remote countries need to pay extra shipping fee 20 euro.
2. We will arrange the shipment within 24 hours(except the weekend and some special holidays) and send you the tracking number via email, please make sure your email address is correct. Usually, it needs 3-7 days to most countries, some remote countries need 5-12 days.
3. Some accessories and harness which only available in China, it is shipping from China via China post as default. Usually, it needs 12-28 days. If you want a faster way, we can ship you via EMS(5-12 days) or DHL(3-7 days, may have tax when you received), but you need to pay extra shipping fees 15 euro via Here. More details pls Check Here.
TAX:
Usually, there is no tax shipping from Germany to most EU countries. If some countries need tax that is depend on your country's customs policy. Our Joying does not undertake the tax. More details pls check Here.
Payment:
Our website only accepts PayPal for payment, the More detailed operation you can check Here.
Privacy Policy:
Joying respects your privacy and takes your online safety seriously. For your full understanding, we do NOT share or in any way distribute any personal, or contact information you may provide.
Warranty:
We offered 2 Years Warranty, 7 days return, and refund. 30 days return with the defective products. More details pls check Here.
OS | Android 10.0 |
---|---|
CPU | Octa Core 1.8GHz. 64-bit high-performance processor |
RAM&ROM | 4GB+64GB |
Standby Current | 11mA |
Working Temperature | -40℃-80℃ |
Boot Up Time | 2s(2nd time) |
OSD Language | Support 50+ kinds of languages(English/German/French/Spanish, etc) |
Built-in 4G Module | Yes |

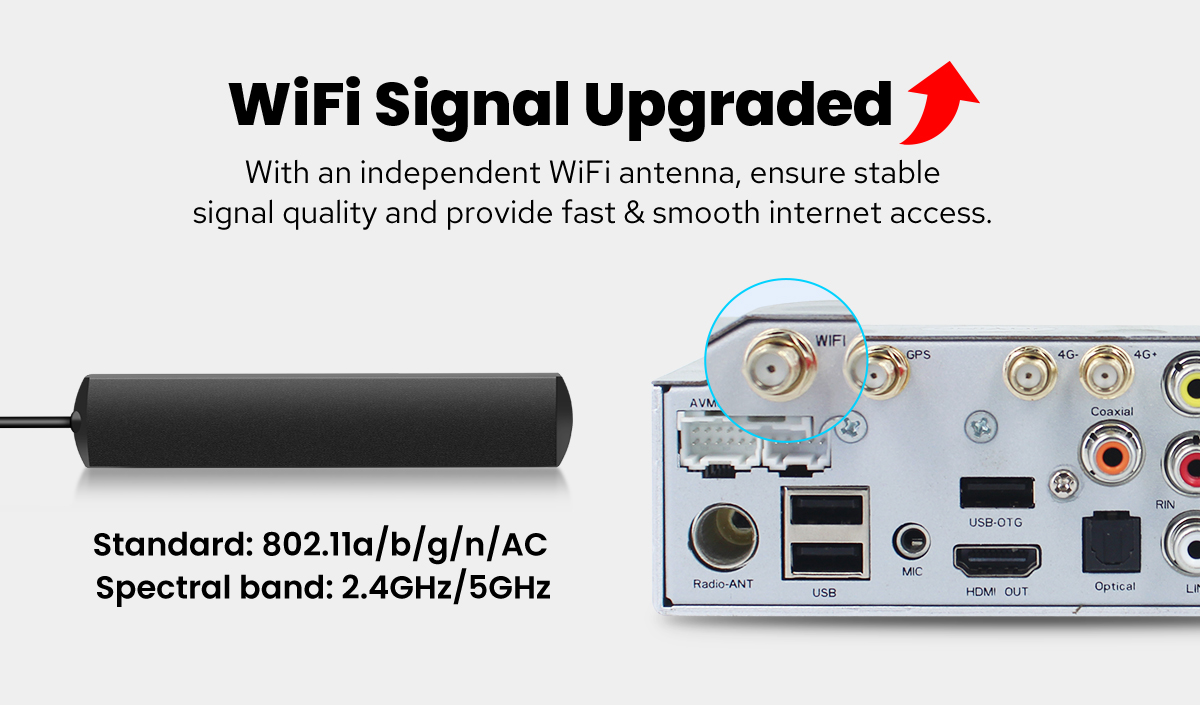

Built-in WiFi | Yes(Support 5GHz wifi) |
WiFi Hotspot | Support(Connect the WiFi Hotspot from other devices) |
Screen size | 9 inch |
Screen Resolution | 1280*720 |
Touch screen type | Capacitive touch screen |
Brightness Adjustment | Support |

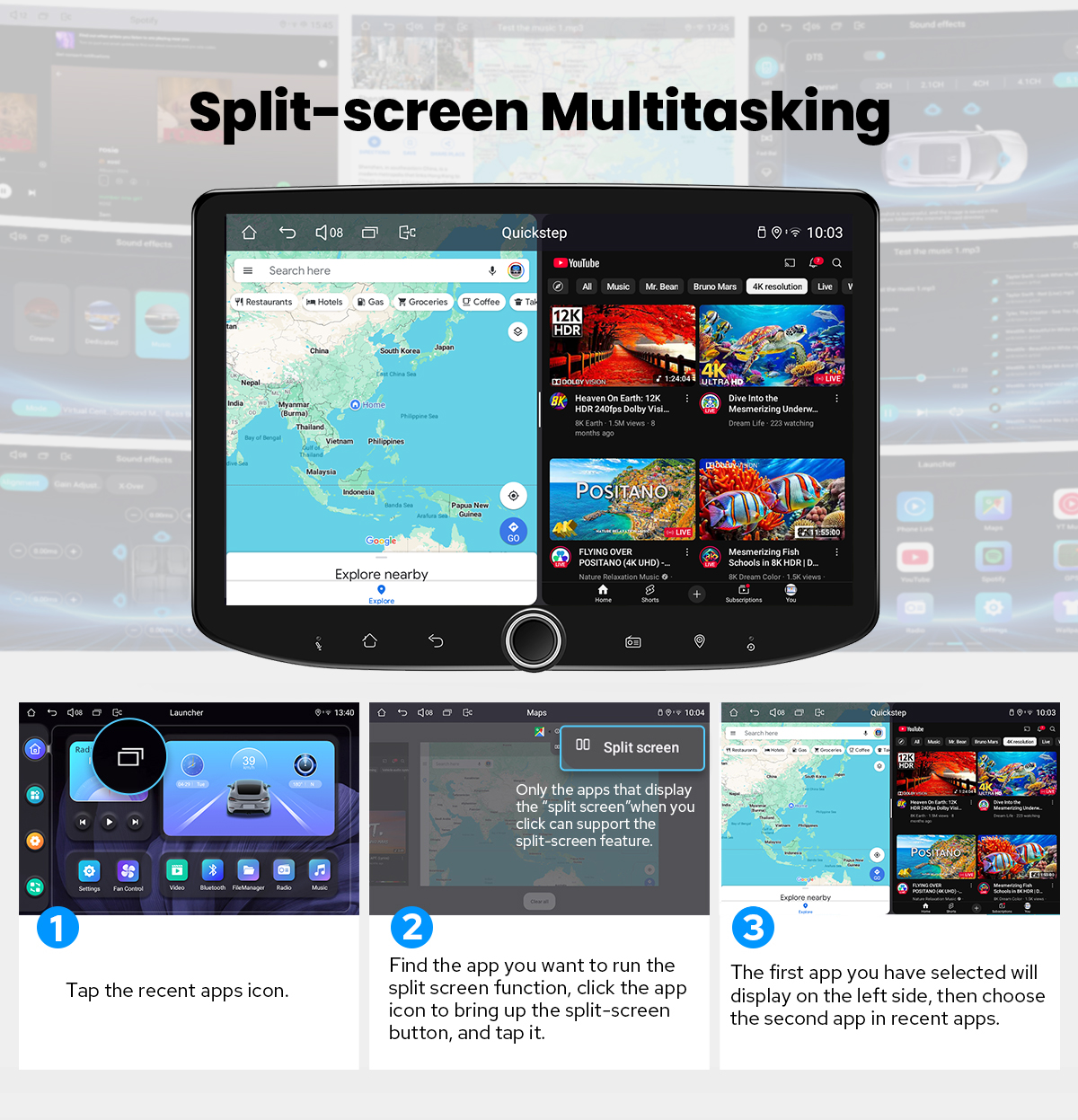

Split screen function | Support |

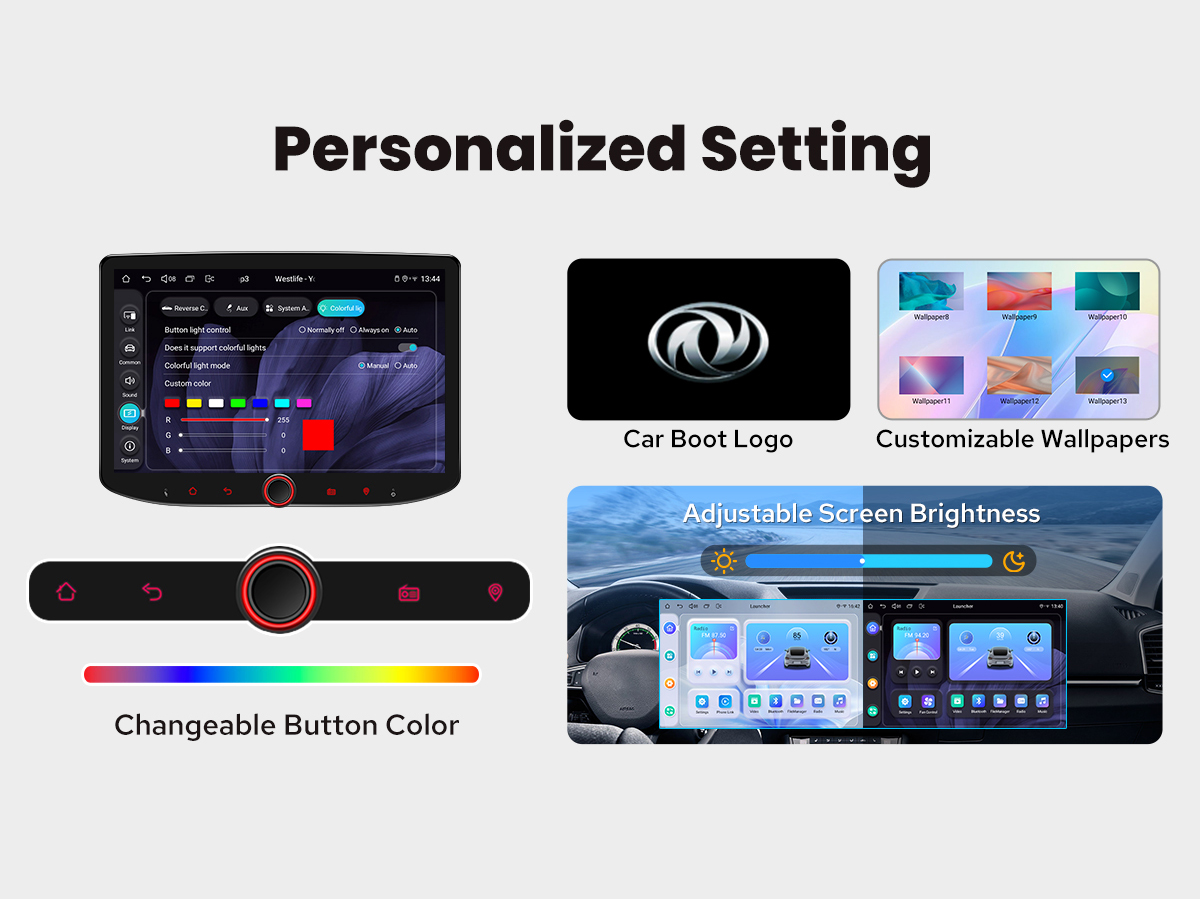

Changeable Boot Logo | Preset 100 Car logos and support Customize car logo |
Wallpaper | Support Dynamic wallpaper, static wallpaper and customize the wallpaper |
LET Button Light | Support 7 colors |
Radio Chip | TDA7786 |
FM/AM | Support |
Radio Frequency Region | USA, Latin, Europe, Russia, Japan |
GPS Antenna | Universal GPS antenna(Do not support the OEM GPS antenna) |
GPS Navigation | Supported and Pre-installed GPS Navigation map dates |
Bluetooth | Bluetooth 5.1, Support Bluetooth hands-free calls, phone book, and Bluetooth music play |
Bluetooth Name/Password | JY-Android & 0000 |
Microphone | Internal microphone & External microphone |
Built-in Amplifier | Yes |
Amplifier IC | TDA7851 |
Audio Power Output | 4X50W |

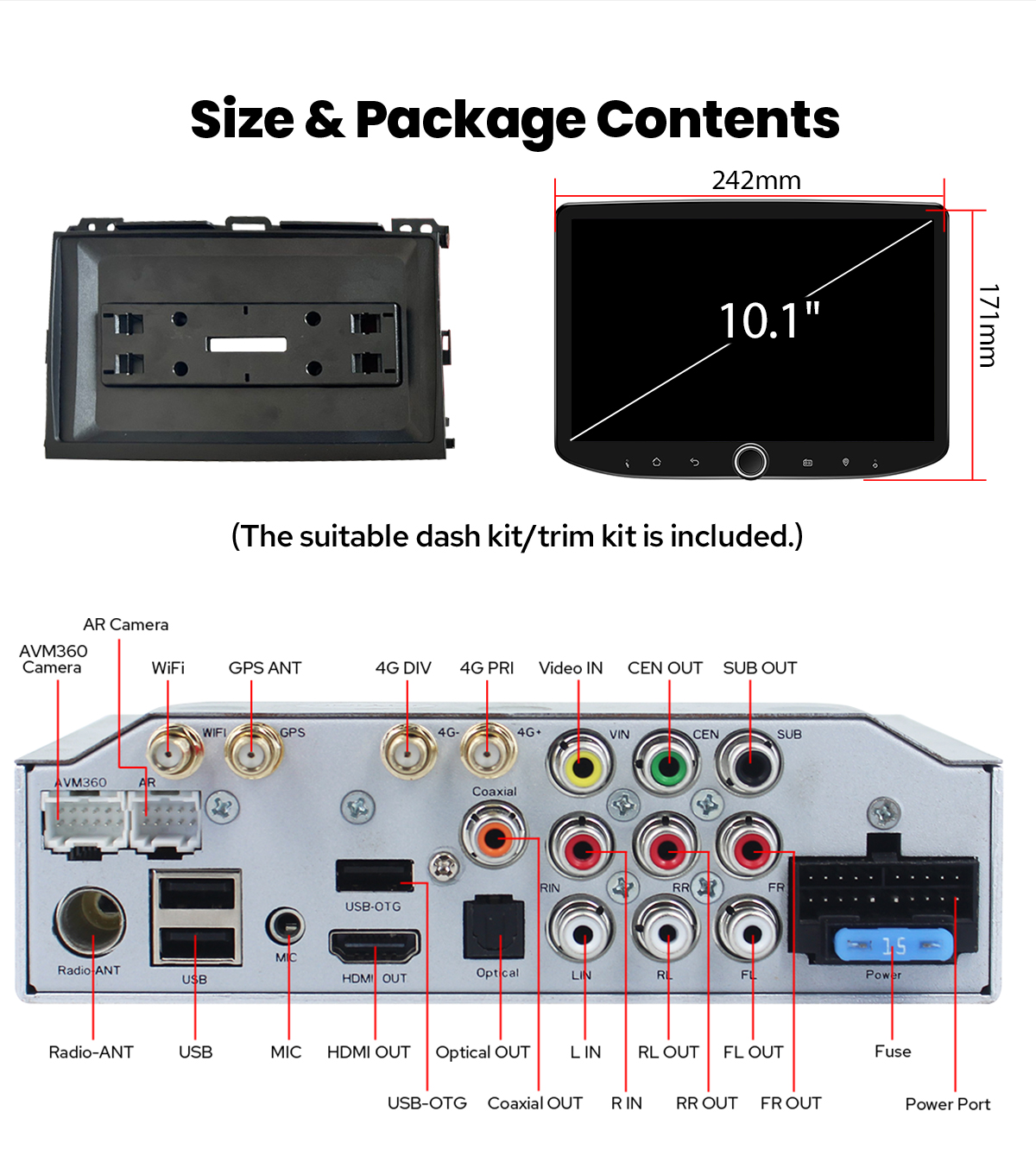

Coaxial(SPDIF) Output | Support |
RCA Audio Output | Support |
RCA Video Output | Not support |
AUX Video/Audio Input | Support |
Subwoofer Output | Support |
Reversing Camera Video Input | Support |
USB/SD slot maximum compatibility | Tested 64GB USB disk and SD card |
HDD | Tested external hard drive 500GB storage |
GPS Antenna Input | Yes |
FR/FL/RR/RL Four Speakers Output | Yes |
EQ(Built-in DSP) | Custom, Soft, Rock, Pop, Jazz, Classic, Hall, Cinema,etc |
OK Google | Support |
Picture in Picture | Support |

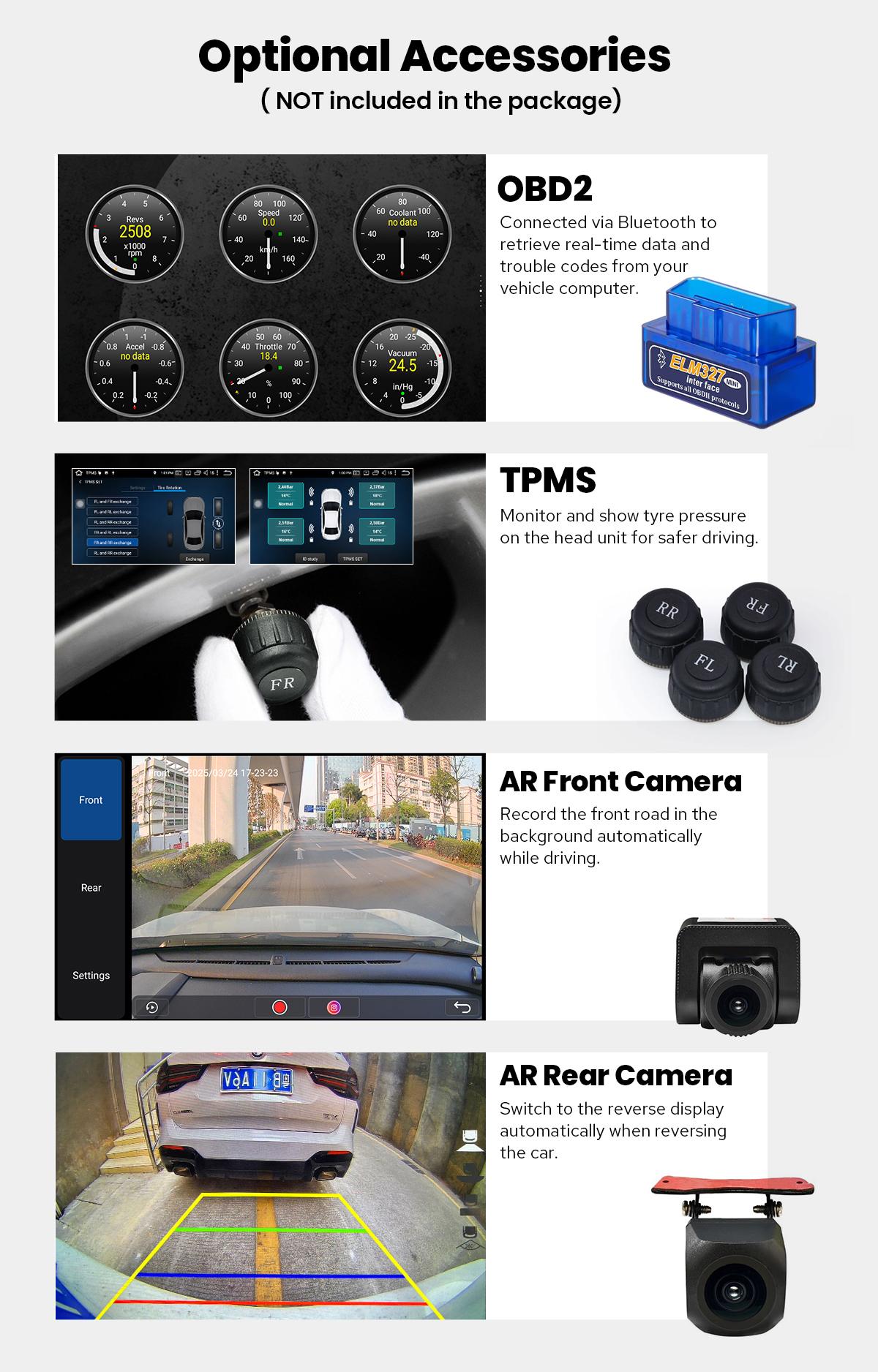

DVR/Backup Camera/DAB+/OBD2/TPMS | Support (Not included) |
SWC | Support |
Mirror Link | Not Support |
Carplay | Support |
Android auto | Support |
